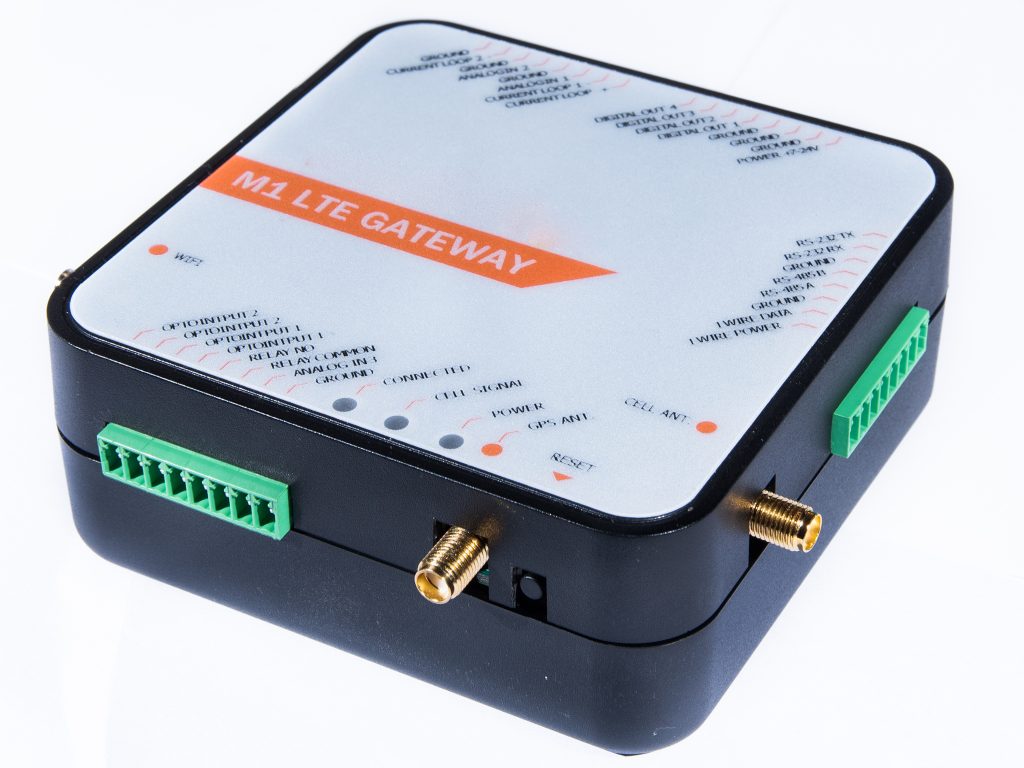

M1 OpenWrt gateway v2 (dual antenna)
Cloud platform connectivity
Cellular LTE+ 3G fallback (Worldwide bands)
Ethernet 10/100 Mbps
GPS GPS/GNSS
Power
Operating voltage 9-24 VDC
Max current required 2A
Battery backup (optional kit) 4x AA NiMh
Inputs/Outputs
Etherner RJ45 1
Serial RS485, RS232, 1-Wire
GPS anntena Active/Passive
3G/LTE antenna Main Tx/Rx, Secondary diversity Rx
SIM card Internal slot
Optically isolated 12-24V input 2
Analog input 0-24V 3
Current loop input 0-30 mA 2
Data collection protocols
Modbus serial Yes
Modbus TCP Yes
Pulse counter Yes
Mechanical features
Dommensions (LxWxH) 4 in. X 4 in x. X 1.6 in.
Chasis Type IP5x
LED indicators Power, cellular level (4 leds), cloud connectivity
Environmental
Operating temperature -40 to 60 C
Relative humidity Non-condensing
Safety and certifications
FCC compliance Contains FCC ID QIPPLS62-W
- Nominal connectivity performance is achieved using both GSM/LTE antennas connected.
- It’s safe, but not recommended to power up device without GSM/LTE antenna. It will add additional power supply current.
- “Analog input 4” is designed to work as current loop input 0-30 mA.
